Thermocouple Transmitter Type J, K , S

Thermocouple Transmitter Type J, K , S

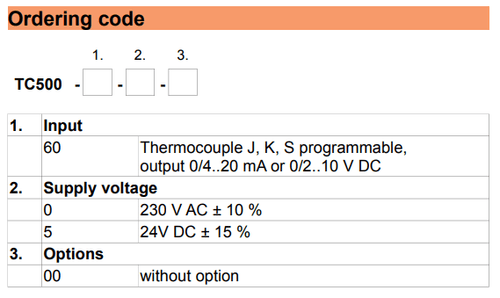

Model Number


Standard Lead Time

Thermocouple Transmitter TC500 converts thermo-voltage inputs into standard industry signal outputs:


  • Thermocouple types J, K, or S


  • 0/4 to 20 mA
  • 0/2 to 10 V DC

The configuration is settable by dip switches, and the measuring range is programmable via rotary switches.

Request A Quote
Ask A Question

Key Specifications

Power Supply
230 V AC ±10 % or 24 V DC ±15 % (AC frequency 47 to 63hz)
Power Consumption
< 3.5VA
Operating Temperature
-10 to +60°C
J Type Temperature Range
-10 to +800°C
K Type Temperature Range
-150 to +1200°C
S Type Temperature Range
0 to +1600°C
≤ 0.15 %, 1 °C
DIN35 rail
Wire Connections
Screw terminal, max 14 AWG
Protection Class

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
