Pressure
Professional Differential Pressure Meter
PRO 211 and PRO 215 are high-performance handheld differential pressure meters, built for durability, ease of use, and reliability.

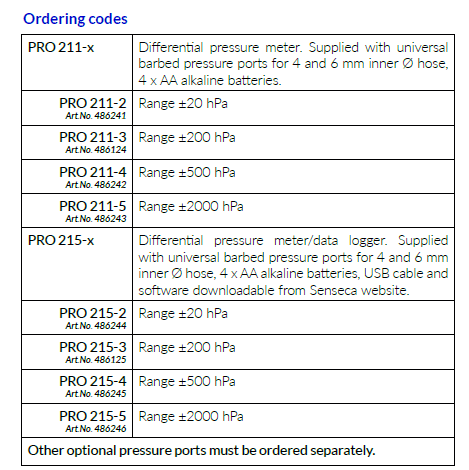

Models:
PRO 211: Non-data logging
PRO 215: Data logging. Mass storage device, easy to retreive data.
Both models feature serial communication at the command level or with the free ProXware application in which you can view and log the data in real time on a PC.
Range:
- PRO 21x-2: ±20.00 hPa
- PRO 21x-3: ±200.0 hPa
- PRO 21x-4: ±500.0 hPa
- PRO 21x-5: ±2000 hPa
Resolution:
- PRO 21x-2: 0.01 hPa
- PRO 21x-3: 0.1 hPa
- PRO 21x-4: 0.1 hPa
- PRO 21x-5: 1 hPa
Request A Quote
Ask A Question
Key Specifications
Differential Pressure Ranges:
±20.00 hPa, ±200.00 hPa, ±500.00 hPa, ±2000.00 hPa
Accuracy:
±0,15 %FSS (*) ± 1 digit typ. @ 25 °C ±1,5 %FSS ± 1 digit max.
Sampling Rate:
4 measurements per second
Connection Type:

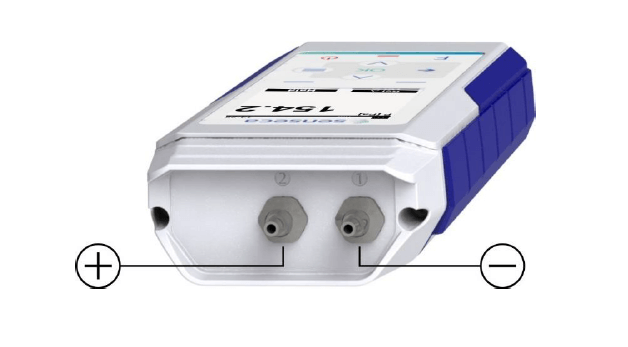

2 x universal barbed pressure ports for 4 and 6 mm inner Ø hose. Interchangeable G 1/8 thread connections, see data sheet for other options.
Logging Interval (PRO215-X)
1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30 min / 1 hour
Units of Measurment:

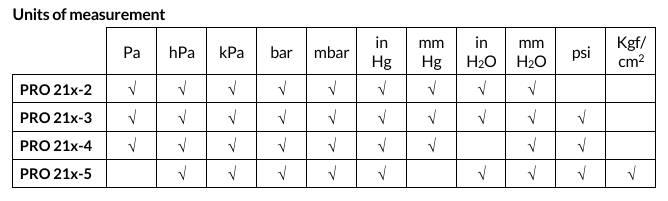

Varies depending on model, see the chart in the picture section or user manual.
Battery Life:
>150 hours
Operating Conditions
-5…50 °C 0…85 %RH non-condensing
Output:

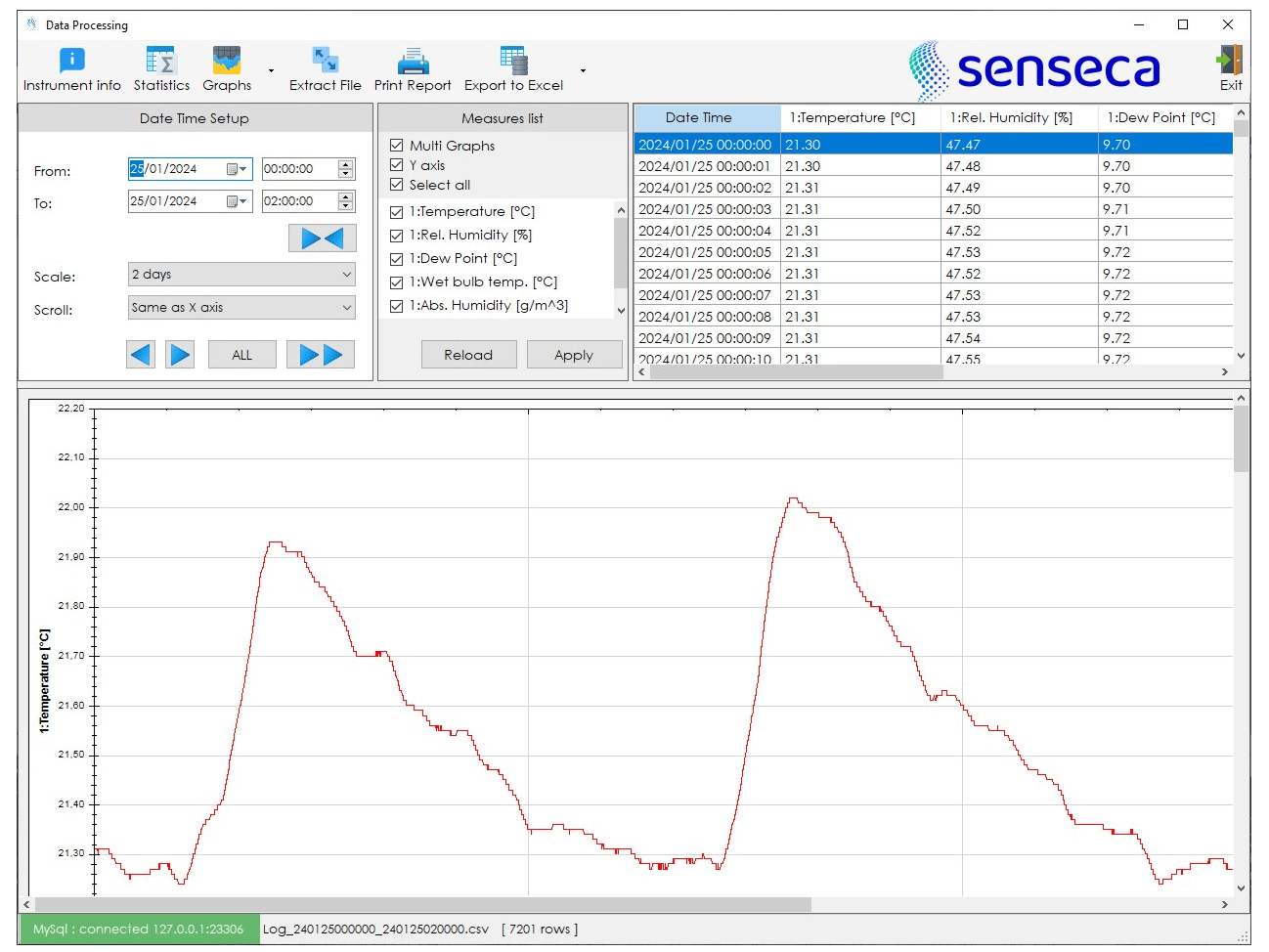

ProXware application real-time data acquisition chart and graph OR query from the command prompt level of any serial communication software
Power Supply:
4 x AA alkaline batteries | External 5 Vdc via USB C

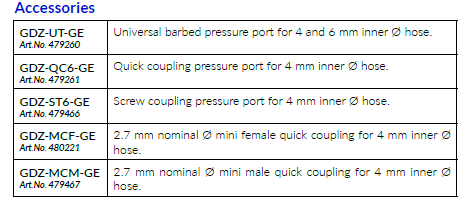

Available Accessories
Available Accessories
Request A Quote
Ask A Question
Calibration and service is available for this item.
Click here to request an RMA
