Flow Switch
MR1K Piston Flow Switch 0.4 to 60 L/min
Mechanical flow switch for fluid media made from stainless steel or nickel plated brass. A spring-supported piston triggers a reed switch at the desired flow rate.
Process Connection:

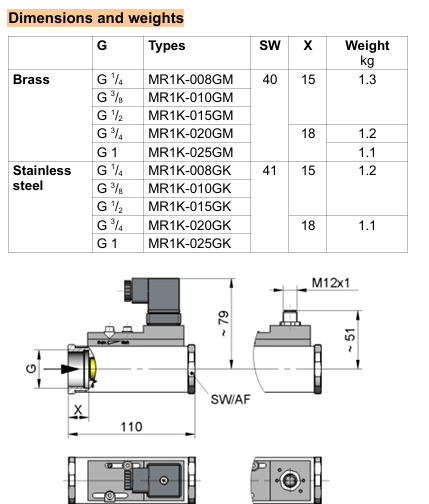

- DN8-G1/4", DN10-G3/8", DN15-G1/2", DN20-G3/5", DN25-G1"

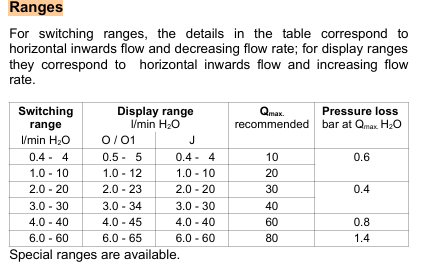

H20 Switching Range:
- 004: 0.4 - 4L/min
- 010: 1.0 - 10L/min
- 020: 2.0 - 20L/min
- 030: 3.0 -30L/min
- 040: 4.0 - 40L/min
- 060: 6.0 - 60L/min
Key Specifications
Switching Mechanism
Reed switch | Max 175V DC / 120V AC | Max 0.25A DC / 0.18A AC
Head Pressure Loss
0.4 to 1.4 Bar at Qmax
Pressure Resistance
PN200 Bar or PN500 Bar upon request
Media Temperature
-20..+120 °C
Ambient Temperature
-20..+70 °C
Media
Water, oil (gases and aggressive media available on request)
Electrical Connection
Plug DIN 43650-A / ISO 4400 optionally for round plug connector M12x1, 4-pole
Wetted Materials (Brass Construction)
CW614N nickelled, CW614N, 1.4310, hard ferrite, NBR
Wetted Materials (Stainless Construction)
1.4571, 1.4404, 1.4310, hard ferrite PTFE-coated, FKM
Installation Orientation
Standard: horizontal inwards flow from the left; other installation positions are possible; the installation position affects the switching point and range.
