All-in-one-Package: Meter + Controller + Recorder + HMI + SCADA
Panel Mounted Instruments

All-in-one-Package: Meter + Controller + Recorder + HMI + SCADA

Model Number
MultiCon CMC-99


Standard Lead Time

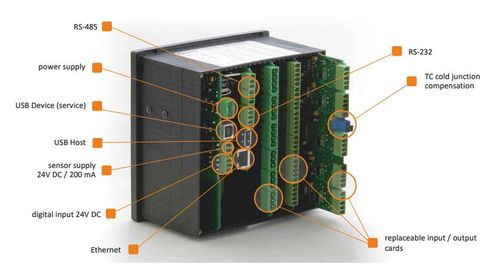

The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with the capability to record data. It is one of the first industrial devices that integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations, and viewing the current state of controlled objects. The touch screen makes configuration easy and comfortable. It can integrate up to 48 inputs, and its construction allows the user to expand the configuration as necessary by choosing from 3 to 27 available input/output modules.

Universal Inputs:

  • Standard analog signals: 0/4 - 20 mA; 0/1 - 5V, 0/2 - 10V, 0 - 30V
  • Thermocouples: J, K, S, T, N, R, B, E (PN-EN), L (GOST)
  • Millivolt: -10 to 25 mV, -10 to 100 mV, 0 to 600 mV
  • RTD (2/3/4 wire): Pt100, Pt500, Pt1000 (PN-EN), Pt'50, Pt'100, Pt'500 (GOST), Ni100, Ni500, Ni1000 (PN-EN), Cu50, Cu100 (PN-83M-53852), Cu'50, Cu'100 (PN-83M-53852)
  • Resistance 0 to 300 Ω, resistance 0 to 3 kΩ

NTC Inputs:

  • NTC 0-110Kohm

Counter Inputs:

  • Max frequency 5khz


  • Up to 8 analogue 4 to 20 mA, passive, isolated, resolution 12 bit
  • Up to 16 SPST relay 1A/250V
  • Up to 4 SPDT relay 5A/250V
  • Up to 48 SSR
Request A Quote
Ask A Question

Key Specifications

Case Dimension
96 x 96 x 100mm
Power Supply
Option 1: 19 to 50VDC or 16 to 35VAC | Option 2: 85-260V AC/DC
Communication Options
None | USB & Ethernet | : 1 x RS-485, 1 x RS-485/232, 1 x USB Host, 1 x Ethernet 10 Mb/s | USB port
I/O modules
See ordering information below.
Memory Capacity
4GB Internal
Data Recording Period
from 0.1 s to 24 h with resolution 0.1 s
3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen
Transmission Protocol
NTP Web Server HTTP Modbus RTU / Master Modbus RTU / Slave Modbus TCP Server
Protection Class
IP 40 (front USB Host) IP 54 (front USB Host + transparent door with key STD-99/141) IP 65 (front)
Operating Temperature

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
