Flow Meter

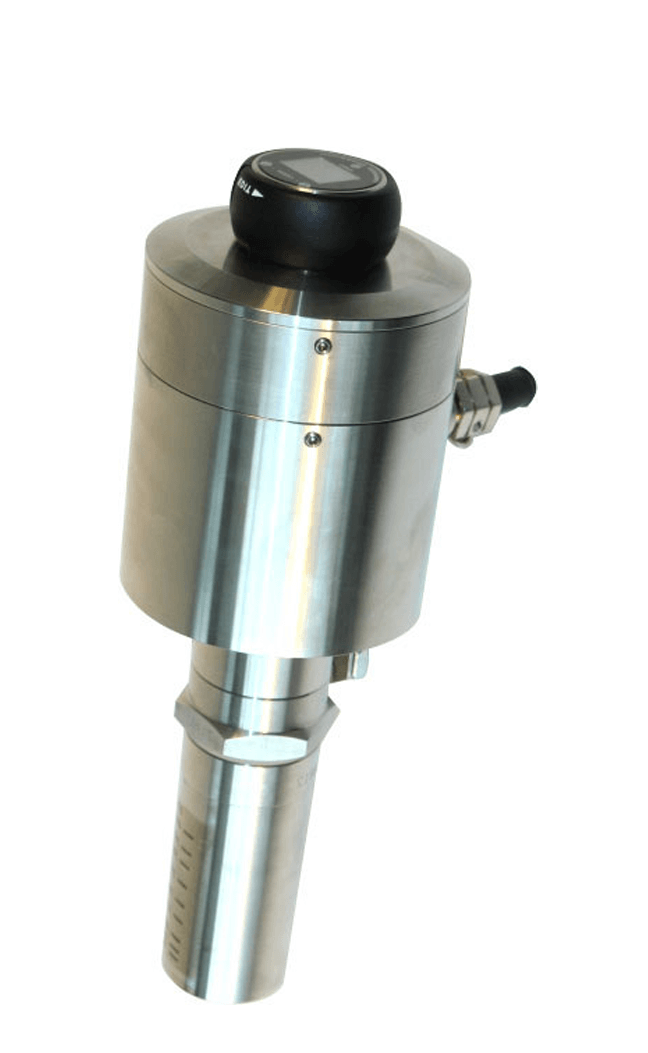

Magnetic Inductive Flow Meter for Conductive Fluids
Conductive fluid moves at a right-angle transverse to the magnetic field of the flow meter which induces a voltage that is directly proportional the local fluid velocity.
The probe sleeve is built into the pipe (weld-on or clamp-on) allowing the meter to be easily removed without creating an opening in the pipe.
No Moving Parts.

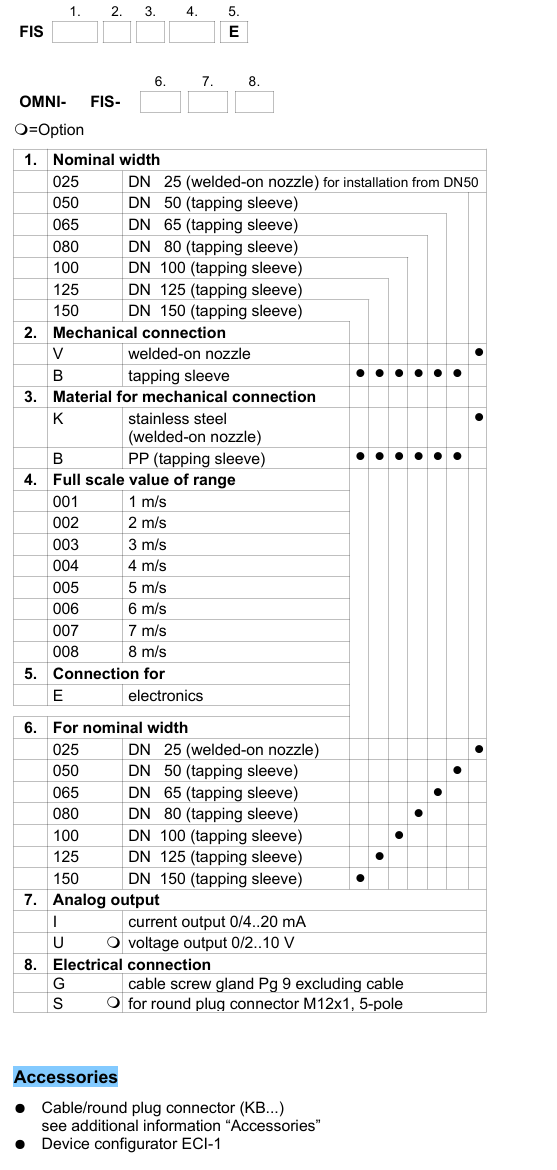

Models:
FIS: 4-20mA output only, no display

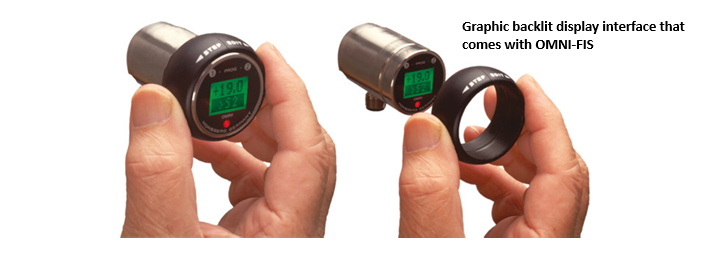

OMNI-FIS: 4-20mA output and push-pull transister output (PNP or NPN) + Backlit graphic LCD Display
Installation:

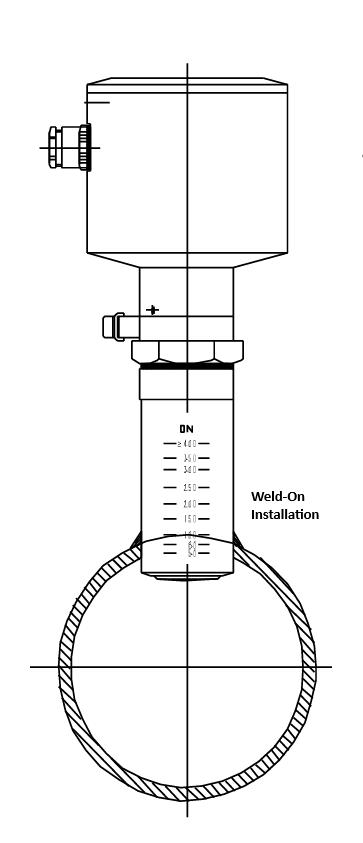

- Weld on
- Clamp on pipe with O-ring seal (tapping sleeve)
Measuring Range:
- 0 to 8 m/s in steps of 1 m/s
Key Specifications
Sensor
Magnetic Inductive
Nominal Pipe Size
Weld-on: DN50 to 300 | Clamp-on: DN50 to 150
Required Minimum Conductivity of the Working Fluid
20 mS/cm
Working Fluid Temperature
-25 to +150 °C
Operating Pressure
Max 25 Bar (weld-on) | Max 10 Bar (clamp-on)
Wetted Materials
Austenitic 1.4435 Stainless probe
Supply Voltage
FIS: 24VDC +/- 10% | OMNI-FIS: 18-30VDC
Media
Conductive, largely homogeneous fluids, pastes, and slurries. (Can also contain solids)
Output
FIS: 4-20mA (passive current output, 500ohm max) | OMNI-FIS: Same as FIS + transistor push-pull + graphic backlit LCD
Electrical Connection
PG9 Gland or plug for M12x1, 4 pole connector
Available Accessories
Available Accessories
