Hotwire Air Speed Transmitter
Air Speed

Hotwire Air Speed Transmitter

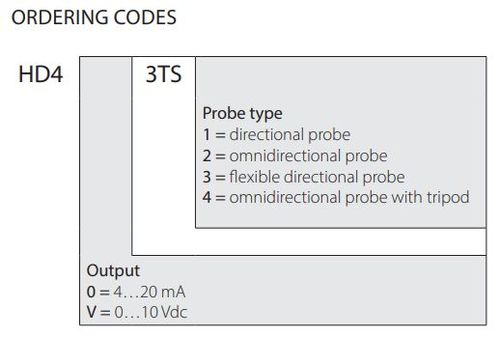

Model Number


Standard Lead Time
3 Weeks

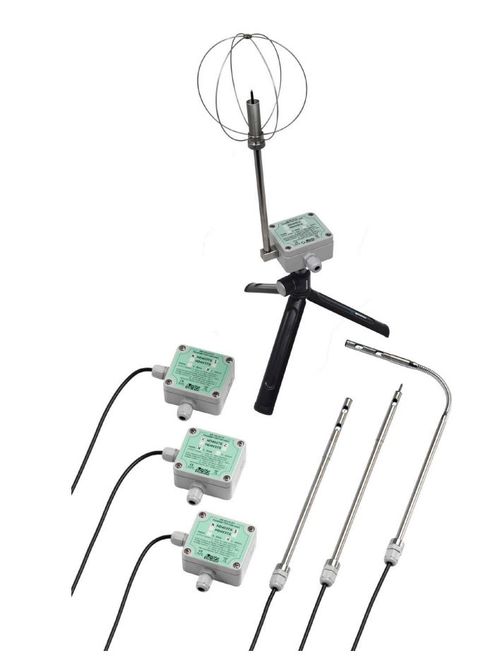

HD403TS and HD4V3TS series of hotwire air speed transmitters are used for measuring and controlling airspeed in ventilation ducts, clean rooms, extractor fans, as well as monitoring air quality (IAQ), etc.

Choose from current or voltage analog output.

Request A Quote
Ask A Question

Key Specifications

Hotwire Probe Type
Directional | Omnidirectional | Flexible articulated tip directional | Omnidirectional with tripod
Air Speed Range [directional variants]
0.20 to 40 m/s
Air Speed Range [omnidirectional variants]
0.1 to 5.00m/s
Analog Output (Model)
4 - 20mA (HD403TS) 0 - 10Vdc (HD4V2TS)
Measurement Accuracy
±(0.2 m/s+3 %f.s.)
Temperature Compensation
0 - 80C
Response Time
0.2 sec (fast) 2 sec (slow)
Cable Length
2m as standard
Sensor Working Conditions
Clean air, RH <80%
Electronics Protections Class

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
