Flow Indicator for liquids 2.5 to 65L/min
Flow Indicator

Flow Indicator for liquids 2.5 to 65L/min

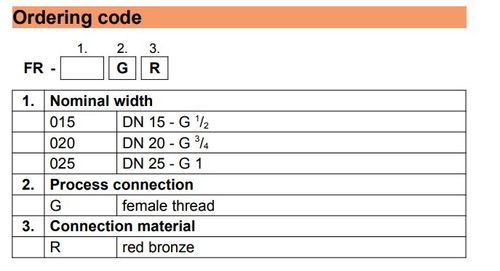

Model Number
FR-015GR | FR020GR | FR025GR


Standard Lead Time

Mechanical flow indicator, for fluid media, with twin rotor for quantitative flow display.

The rotors on both sides of the sight glass turn in proportion to the flow.

Robust construction in red bronze/brass

Request A Quote
Ask A Question

Key Specifications

Process Connection
G thread: 1/2, 3/4, 1

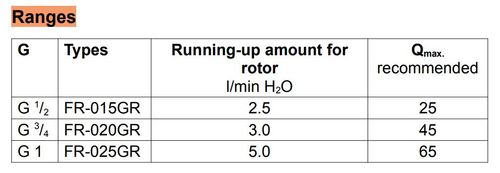

Display Ranger
2.5L/min to 65L/min
Working Fluid Temperature
0 to 100°C
Wetted Materials
Rg 5, CW614N, soda lime glass, POM Klingersil C4400
Working Fluid
Water, Oils tend to have a higher running up value
Recommended Max Flow
G1/2: 25L/min | G3/4: 45L/min | G1: 65L/min
Connection Material
Red Bronze

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
