Flow Indicator for Liquids 0.5 to 26.5L/min
Flow Indicator

Flow Indicator for Liquids 0.5 to 26.5L/min

Model Number

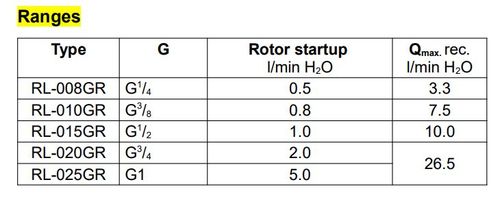

RL-008GR | RL-010GR | RL-015GR | RL-020GR | RL-025GR


Standard Lead Time

Mechanical flow indicator, for fluid media, with rotor for quantitative flow display.

Robust construction out of gunmetal and brass.

Highly visible rotor encapsulated in a soda-lime glass dome.

Request A Quote
Ask A Question

Key Specifications

Nominal Width
DN8, DN10, DN15, DN20, DN25
Process Connection
Female thread: G1/4, G3/8, G1/2, G3/4, G1
Rotor Startup
0.5 to 5.0L/min
Maximum Pressure
6 Bar
Head Pressure Loss
0.05 Bar at Qmax
Working Fluid Temperature
-20 to 100°C
Ambient Temperature
-20 to +70°C
Working Fluid
Water, Oils tend to have high rotor starting value.
Wetted Materials
Gunmetal, brass, soda-lime glass, stainless steel, nylon, NBR

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
