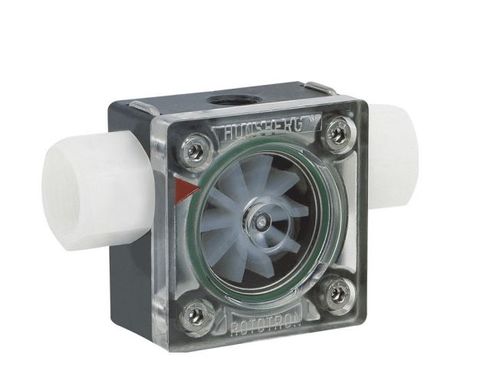

Flow Indicator for liquids 0.1 to 100L/min
Flow Indicator

Flow Indicator for liquids 0.1 to 100L/min

Model Number
PO010G... PO025G...


Standard Lead Time

Mechanical flow indicator, for fluids, with rotor for quantitative flow display. The rotor turns in proportion to the flow.

Request A Quote
Ask A Question

Key Specifications

Nominal Width
DN10, DN25
Process Connection Thread
G3/8, G1
Display Range
0.1 to 100L/min
Working Fluid Temperature
0 to 60°C
Wetted Materials
PPS, PSU Ultrason, PVDF, ceramic Zr02-TZP, Iglidur X, FKM
Working Fluid
Water, Oils tend to have a higher running up value.
Max Pressure
16 Bar
Connection Material
Choose from: PVDF, CW614N (brass), or Stainless steel
Inwards Flow Diameter
Choose from: 2,5,7,8,12, or 16 mm
Sealing Material
Choose from: FKM, EPDM, or NBR

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
