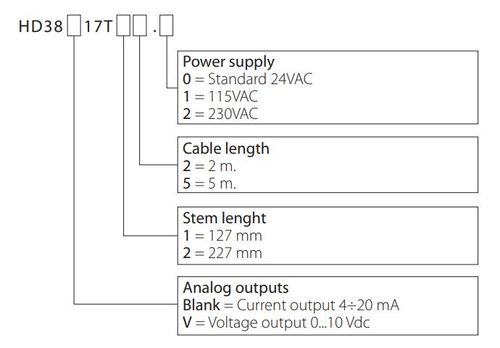

Model Number
HD3817T / HD38V17T


Standard Lead Time
3 weeks

Absolute humidity is the ratio between the mass of water vapor per volume of air, and is expressed in g/m3. The transmitters of the HD3817T are used to monitor and control humidity during a drying process. When drying through heating or hot air flow, the air absolute humidity increase is directly proportional to the quantity of water lost. A control system measuring absolute humidity, can maintain a humidity level by injecting vapor or spray into the process environment.

Common applications are in the following industries:

Chemical, textile, food, production and storage of paper, and drying of lumber.

These sensors are immune to most chemical exposures.

The maximum working temperature is 200 °C which makes these instruments particularly suited to heavy industrial applications where the traditional capacitive sensor cannot be used.

Request A Quote
Ask A Question

Key Specifications

Type of Sensor
Heat conductivity with double combined NTC
Measurment Range
0...130 g/m3 (0...100% RH @60 °C and 1013hPa) | Note: maxiumum humidity value varies with enviornmental temperature.
±3 g/m3 at 35 g/m3 and 40 °C
Response Time
60 seconds to 63% of final value
4 Wire Pt100 | 0-200C range | 1/3 DIN
Analog Outputs
4-20mA or 0-10Vdc
Probe Material
AISI304 Stainless Steel
Supply Voltage
24VAC or 115VAC on request

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
