Bidirectional Turbine Flow Indicator for Transparent Fluids 0.6 to 50L/min
A signal-red turbine wheel rotates in a glass tube proportional to the flow.
The flow indicator is designed for a long life thanks to the robust design of the turbine bearings.
DN8, DN10, DN15, DN20, DN25
Female thread: G1/4, G3/8, G1/2, G3/4, G1

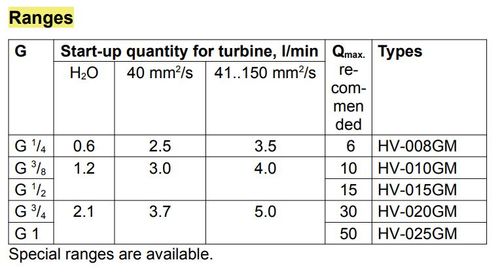

0.6 to 50L/min
Working Fluid Temperature
-20 to +100°C
-20 to +70°C
PPh, Brass, 1.4301 Stainless Steel, Borosilicate glass, NBR
Water, Oils have a tenedancy to cause a higher rotor start-up value
