Omnidirectional Hotwire Air speed Transmitter
Air Speed

Omnidirectional Hotwire Air speed Transmitter

Model Number


Standard Lead Time
3 weeks

Our smallest form factor for an omnidirectional hotwire transmitter with a variety of analog outputs that are selectable by dip switch.

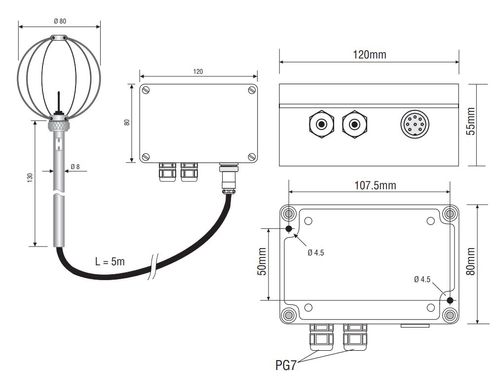

145mm from the back of the handle to the tip of the sensor.

Request A Quote
Ask A Question

Key Specifications

Air Speed Range
0.1 to 5 m/s
Air Speed Accuracy
±0.1m/s (in the range 0.9 to 0.99m/s) | ±0.4m/s (in the range 1 to 5m/s)
Temperature Range
-10 to +80C | Temperature compensation in the range 0 to 80C
Temperature Accuracy
±0.3C (in the range 0-70C) | ±0.4C (in the remaining range)

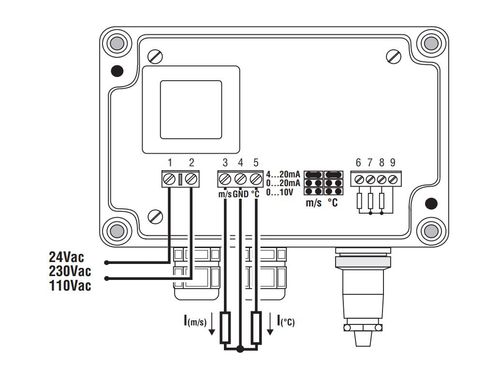

Air Speed and Temperature Analog Outputs
4 - 20mA | 0 - 20mA | 0-10VDC [ 0 - 1V or 0 - 5V possible by special request]
Supply Voltage
230VAC | 110VAC | or 24VDC
Operating Temperature
-10 to 80C (probe) -5 to 50C (electronics)
Cable length
5m standard

Available Accessories

Available Accessories

No accessories are set for this product.
No accessories are currently available for this item.
Request A Quote
Ask A Question
service icon
Calibration and service is available for this item.
