Advanced DC Voltage / Current Isolator
Isolator

Advanced DC Voltage / Current Isolator

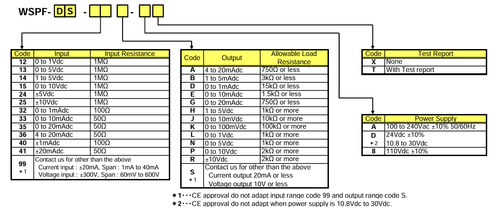

Model Number
WSPF-DS
Price

$

Standard Lead Time
3 weeks

This compact plug-in type converter (isolator) provides signal output which ismutually isolated between input, output and power-supply.It amplifies and converts various kinds of signal with isolation to use in the integratedinstrumental control system. It is highly effective as noise countermeasures.

★Fine zero & span adjustment by 15 turn trimmer pot

★Zero & span adjustment ±10% full scale

★Safe design by dielectric strength of 3000Vac

★Compatible with 30Vdc power supply voltage

★5 year warranty

Request A Quote
Ask A Question

Key Specifications

Input/Output Signal
See data sheet for DC Current/ Voltage ranges
Accuracy
±0.1% FS (at 23°C)
Response Time
Approx. 25ms (0 to 90%)
Allowable load
Current output 15V or less of voltage drop between output terminal Voltage output Load current 5mA or less *1µA or less if the output is less than 1V FS
Isolation
Between input, output, and power supply.
Insulation Resistance
100MΩ or more with 500Vdc megger Between input, output, and power supply terminal
Dielectric strength
3000Vac for 1 minute between power supply and input/output terminal, 2000Vac for 1 minute between input and output terminal
Power consumption
Approx. 4.5VA (AC), Approx. 60mA (DC)
Power supply variation
±0.1% FS (within the range of rated voltage)
Connection
M3 SEMS screw part of the base socket (Tightening torque 0.6N·m)
